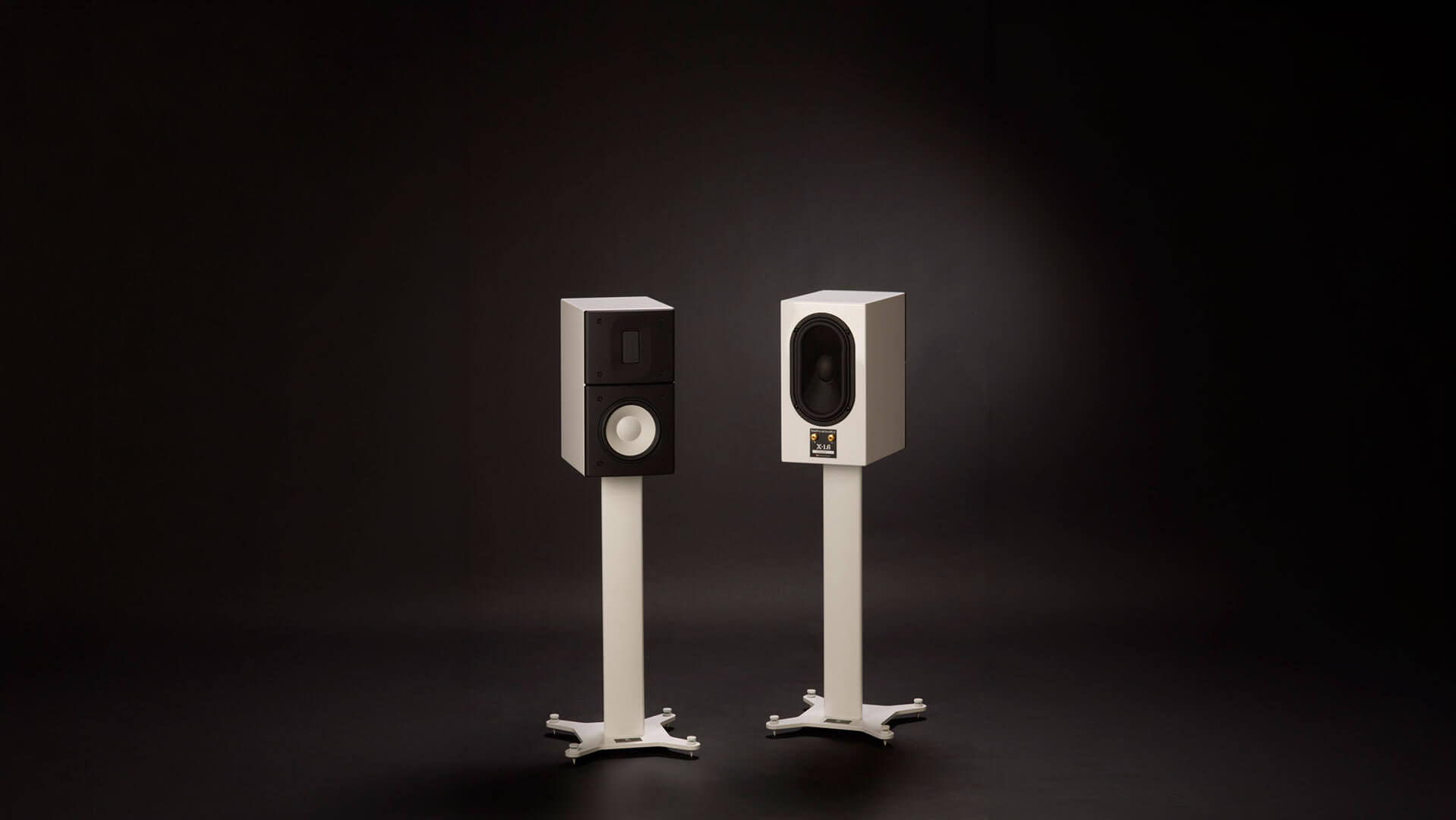

A 2-way standmount built on the X1.6 platform, refined with a hand-built crossover, premium Mundorf components and Nordost Valhalla-based wiring, plus a rear passive radiator for greater bass authority.
Category
2-way Rear Ported with Passive Driver on the Rear
Type
Stand Mount Monitor
Connection
Single Wire
Recommended Amplification
Minimum: 50 watts. Recommended: 100+ watts into 8 ohms
Recommended Room Size
15 - 35 m²
FINISHES
Black piano, White piano and Walnut
Why it exists
Extreme performance for the price, expressed through compact dimensions, proprietary technology and Danish craftsmanship.
The X1.6 Reference was created to explore how far the compact loudspeaker concept can be taken when every important detail is elevated. It builds on the musical foundation of the X1.6 with a fully hand-built crossover, premium Mundorf components and internal wiring based on Nordost Valhalla technology. A rear-mounted passive radiator adds greater bass freedom, physical presence and scale without compromising the speed and control expected from a Raidho stand-mount design. The result is quieter, more open and more emotionally direct, allowing music to emerge with greater ease and completeness. X1.6 Reference is for listeners who need a room-friendly loudspeaker but refuse to lower their ambitions. It exists to make the cabinet disappear and leave behind a performance that feels far larger, deeper and more assured than its dimensions suggest.
Specifications & Downloads
Specifications
Downloads
Design & Finishes
Why it sounds different
Raidho Ceramix technology begins with a lightweight aluminium cone whose outer surfaces are transformed into aluminium-oxide ceramic. The result is a naturally bonded sandwich structure combining high rigidity with excellent self-damping.
aluminium core · ceramic skins · natural damping
On the X Series “t” models, a tantalum coating makes the Ceramix membrane even harder and stiffer without adding significant moving mass. Breakup modes are pushed as high as 15 kHz, preserving clarity across a remarkably wide range.
tantalum coating · increased rigidity · 15 kHz breakup
Powerful neodymium magnets drive the titanium voice coil within an exceptionally open motor structure. Airflow helps cool the coil and reduces reflections that could otherwise colour the sound, keeping the bass fast, articulate and precisely controlled.
neodymium motor · titanium coil · open airflow
Why it sounds different
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur.
Block quote
Ordered list
Unordered list
Bold text
Emphasis
Superscript
Subscript
The Raidho planar-magnetic tweeter brings together the best of two worlds: exceptional detail and resolution combined with a smooth, natural musicality. With virtually no distortion or coloration, nothing stands between you and the music.
planar magnetic · ultra-low mass · fast response
At only 11 microns thick and weighing just 20 milligrams, the foil carries around 50 times less mass than the diaphragm of a conventional dome tweeter. The result is effortless speed and microdetail without the tweeter drawing attention to itself.
11 μm foil · 20 mg membrane · low inertia
The ribbon’s first breakup mode lies far beyond the audible range, at an exceptional 82 kHz. Resonances are kept away from the music, allowing voices and instruments to emerge within a wide, open and holographic soundstage.
82 kHz breakup · low resonance · natural clarity
Watch
Awards
-p-500.png)
Quotes
Reviews
Hear it for yourself
Book a private listening session at a Raidho partner near you, or find your nearest dealer.
