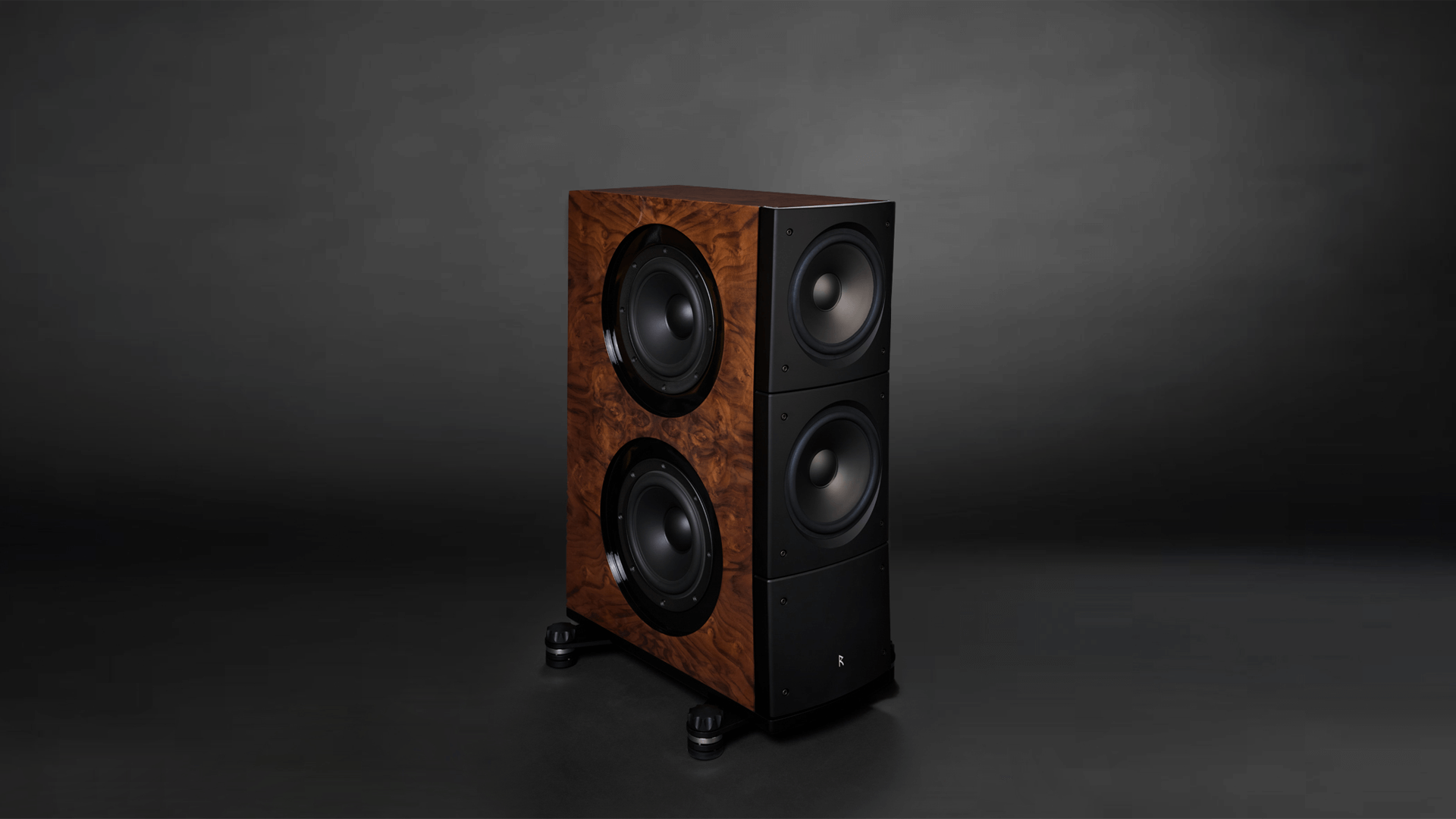

Diamond-coated active drivers and multiple passive radiators in a stackable enclosure deliver Raidho's deepest, most authoritative bass foundation.
Category
Type
Connection
Recommended Amplification
Recommended Room Size
FINISHES
Black piano, Walnut burl piano
Why it exists
Extreme performance for the price, expressed through compact dimensions, proprietary technology and Danish craftsmanship.
The TD10 was created for systems that demand the deepest extension, greatest authority and most effortless low-frequency scale Raidho can provide. Its diamond-coated active drivers and multiple passive radiators move substantial amounts of air while preserving the speed, control and tuneful character required for serious music reproduction. Low-latency amplification and flexible DSP make it possible to shape crossover, phase and response around both the room and the partnering loudspeakers, while the stackable enclosure allows performance to grow with the ambitions of the system. TD10 is not designed to make bass a separate effect. It exists to complete the musical picture - giving orchestras their true foundation, electronic music its physical force and every recording a more convincing sense of space, weight and realism.
Specifications & Downloads
Specifications
Downloads
Design & Finishes
Why it sounds different
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur.
Block quote
Ordered list
Unordered list
Bold text
Emphasis
Superscript
Subscript
The TD membrane combines five carefully engineered layers: an aluminium core, ceramic surfaces, tantalum and a final coating of artificial diamond. Each cone carries approximately 1.5 carats of diamond in a layer measuring only 10 microns.
five-layer cone · tantalum · 1.5-carat diamond coating
The tantalum-and-diamond structure is up to 50 times stiffer than a ceramic-only membrane. Resonances are reduced by 36 dB, while the first breakup mode is raised to 20 kHz, leaving the audible range exceptionally clean.
50× greater stiffness · 36 dB resonance reduction · 20 kHz breakup
An N52 neodymium magnet drives an underhung square-wire titanium voice coil with exceptional linearity. The turbine-shaped motor and open basket minimise reflections, while copper-coated pole pieces reduce inductance, delivering bass with speed, authority and precise timing.
n52 neodymium · underhung titanium coil · low inductance
Why it sounds different
The Raidho planar-magnetic tweeter brings together the best of two worlds: exceptional detail and resolution combined with a smooth, natural musicality. With virtually no distortion or coloration, nothing stands between you and the music.
planar magnetic · ultra-low mass · fast response
The redesigned construction increases sensitivity by three decibels, giving the tweeter greater freedom to follow the exceptional speed of the TD drivers. From the finest microdynamics to sudden musical peaks, the entire loudspeaker responds as one coherent voice.
+3 dB sensitivity · effortless dynamics · seamless integration
Already minimal distortion has been reduced by a further 35 dB in the TD design. Fine textures, harmonics and spatial information are revealed without hardness or exaggeration, creating exceptional resolution that remains natural.
35 dB lower distortion · high resolution · fatigue-free sound
Watch
Awards
Quotes
Reviews
Hear it for yourself
Book a private listening session at a Raidho partner near you, or find your nearest dealer.
