Raidho TD3.10

Raidho TD3.10 – Reference Loudspeaker with Unrivaled Coherence and Power

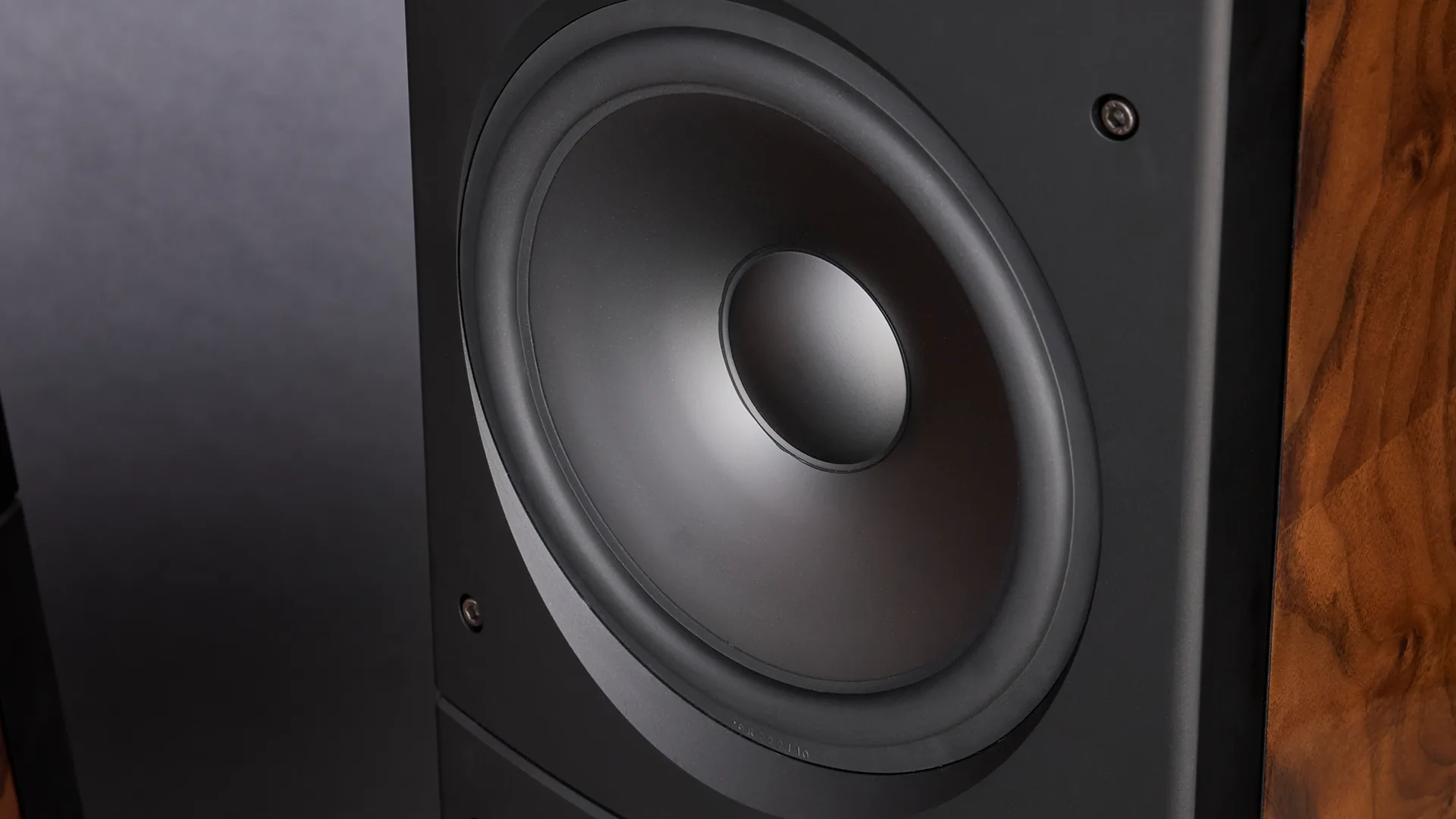

The TD3.10 isn’t just the successor to the acclaimed TD3.8—it’s Denmark’s newest icon inhigh-end audio, reaffirming the nation’s leadership in sonic innovation. Basedon the TD3.8 platform, it introduces 10″ diamond-coated bass drivers—thelargest ever used in a production speaker—delivering bass extension down to 20Hz with exceptional precision and control.

A meticulously engineered three-way crossover uses second- and fourth-orderslopes at 240 Hz and 2.7 kHz, employing custom filter techniques developed byRaidho. Mundorf High End components, air-core inductors, and polypropylenecapacitors ensure ultra-low distortion, while Nordost Norse internal wiringguarantees pure signal transmission.

The MTM (midrange-tweeter-midrange) configuration tightens vertical dispersion andimproves off-axis response, yielding a lifelike, coherent soundstage withastonishing realism and detail.

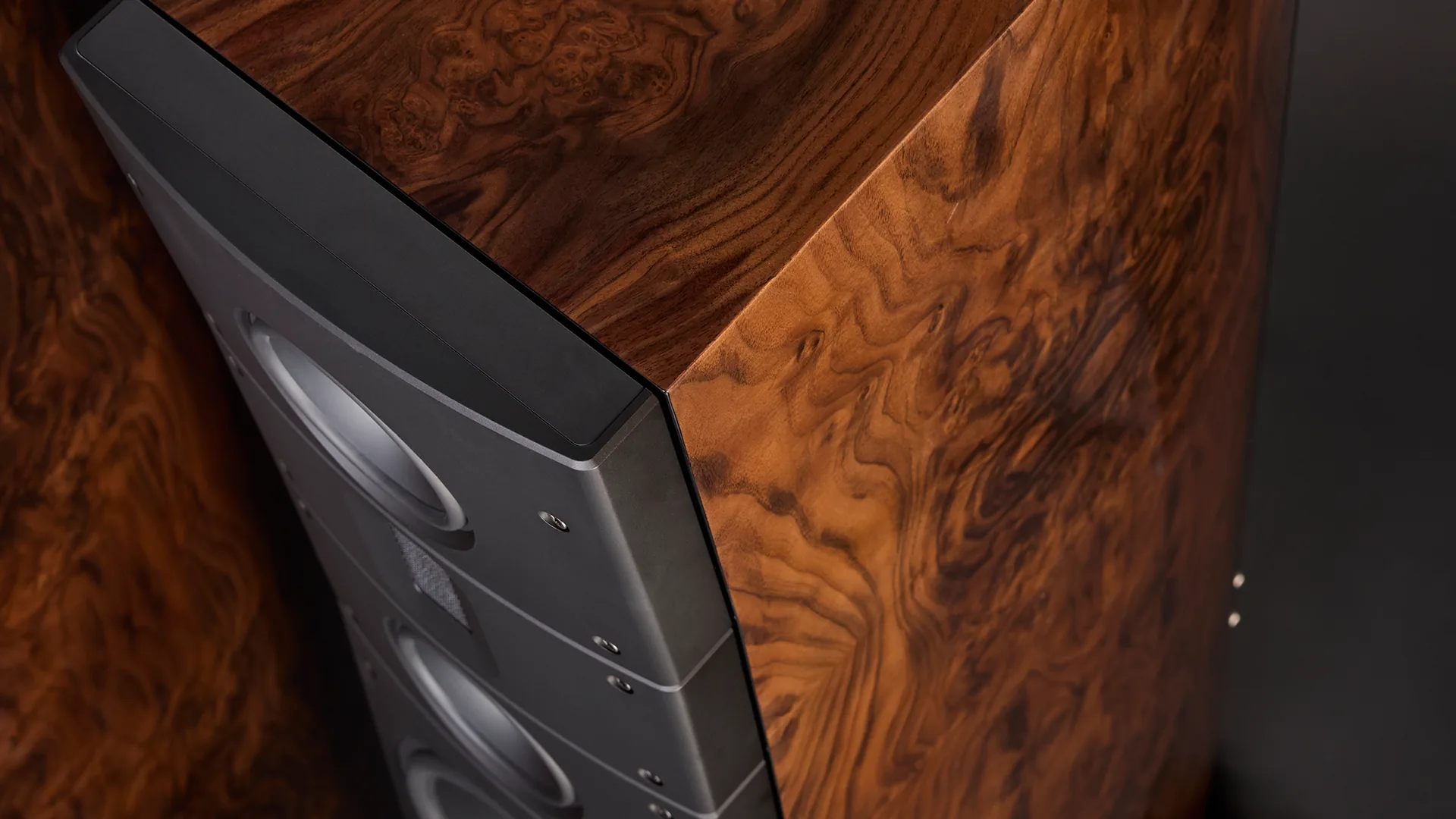

Housed in aluxurious walnut burl cabinet, each speaker begins with rare, hand-matchedveneer "flowers" laminated onto curved CNC-milled panels for optimalresonance control. The cabinets undergo eight precision sanding stages andreceive sixteen layers of high-gloss lacquer, resulting in a flawless mirrorfinish. Every veneer panel is serialized, ensuring perfect left/right speakerpairing and unmatched visual consistency.

The TD3.10 delivers not just breathtaking sound—but also visual and material craftsmanshipof the highest caliber.

No items found.
No items found.
No items found.
No items found.
No items found.
No items found.
No items found.
No items found.
No items found.
No items found.
No items found.
Image of a Raidho Driver from the back

Raidho Series TD
‍Drive Unit

This is truly a unique and revolutionary drive unit! 100% developed and build inhouse by Raidho. The goals was simple: no coloration and outstanding dynamic capabilities.
‍
The motor comprises of a very strong magnet (N52 Neodymium) with an unseen even magnet field, coupled with an underhung titanium voice coil. This arrangement gives the drive unit the most powerful underhung magnet system in the world. The benetfit from an underhung voicie coil over the traditional overhung, is that it is much more linear and better dynamic capabilities. The result is perfect transient response with no measurable distortion.

Read More

Raidho Series X
‍Drive Unit

This drive unit is not only highly advanced and built in-house in Denmark, but is also a piece of art.

The result is that the speakers disappear even more from the equation, drawing a soundscape without audible distortion and with a pitch-black background that made the instruments stand out and create holographic sound stage.

Read More

The Legendary Raidho Ribbon Tweeter

Our proprietary, trademark ribbon tweeter is a unique design. It is completely designed and build by hand in-house in Denmark. To be exact, it is a Planar Magnetic Tweeter due to the tracks in the foil. The foil is 11 micron thick, which means it is 50 times less mass in comparison to a conventional dome tweeter. This is because there is no voice coil and the extreme low weight of the foil (20 milligram). The result is virtually no resonances or distortion, and the breakup point is at an incredible 82 KHz! What you hear is amazing clear and natural sound. All the detail in the world, but no fatigue, no distortion, and no coloration!

Read More

Our Awards

No items found.
No items found.

Photo Gallery

What the press is saying about the

Raidho TD3.10

Quote

Technical Information

Dimensions

Topology
3-way bass-reflex tower
Bass Loading
Drivers

1 × Raidho Planar-Magnetic Ribbon Tweeter

2 × 5.25” TD Midrange

2 × 10” TD Bass Drivers

Crossover Point
240 Hz, 2,7 kHz
Frequency Range
20 Hz – 50 kHz (±3 dB)
Sensitivity
89 dB (2.83 V/1 m)
Nominal Impedance
4 Ω
Power Requirement
50 - 300 W
Finish
Dimensions WxHxD, mm
485 x 1520 x 700 (incl. spikes)
Enclosure WxD, mm
Weight, kg
105 each
Amplification
Width external, cm
A & B
70,5
Width inside, cm
A & B
62,8
Depth, cm
A & B
49
Height external, cm
A 12,4
B 25,2
Height inside, cm
A 8,7
B 21,5
Maxload,kg
A & B
90
Weight A, kg
12,5
Weight B, kg
16
