Raidho TD10 SUB

Raidho TD10 SUB – Diamond Precision at the Deepest Frequencies

Raidho Acoustics presents the world’s first subwoofers with diamond-coated drivers.The subwoofers redefine what bass can be—tight, tuneful, and uncompromisinglyhigh-end.

Designed for audiophiles who demand both precision and power, these subwoofers featureRaidho’s proprietary diamond-coated Ceramix drivers. Each model is engineered forseamless integration with any high-resolution system— delivering low-endperformance that’s as musical as it is visceral.

These new subwoofers do not look like most other subwoofers. At Raidho we did want tofall into the usual trap of having a very small cabinet and creating adedicated subwoofer drive unit with very high excursion, add a very large ampand then with DSP make the loudspeaker do all the things that it does want to.This will always be a compromise.

Instead, wegive the perfect work conditions for our already very advanced and high-enddiamond-coated drive units. In this way we can get very clean, fast andresponsive bass performance.

On top of all that, we have added DSP functions, so it is possible via a PC to configurethe subwoofer in any way you like. A very versatile very high-end soundsubwoofer that will integrate perfectly with any Raidho speaker and most otherhigh-end speakers.

With the TD10 it is also possible to stack them for truly overwhelming force of power.

Stackable enclosure for tower configurations

Features:

500 WClass-D Hypex Ncore amp with very low latency

PC-basedDSP tuning for high flexibility (crossover, EQ, phase)

Analoghigh-level, RCA & XLR inputs

No items found.
No items found.
No items found.
No items found.
No items found.
No items found.
No items found.
No items found.
No items found.
No items found.
No items found.
Image of a Raidho Driver from the back

Raidho Series TD
Drive Unit

This is truly a unique and revolutionary drive unit! 100% developed and build inhouse by Raidho. The goals was simple: no coloration and outstanding dynamic capabilities.

The motor comprises of a very strong magnet (N52 Neodymium) with an unseen even magnet field, coupled with an underhung titanium voice coil. This arrangement gives the drive unit the most powerful underhung magnet system in the world. The benetfit from an underhung voicie coil over the traditional overhung, is that it is much more linear and better dynamic capabilities. The result is perfect transient response with no measurable distortion.

Read More

Raidho Series X
Drive Unit

This drive unit is not only highly advanced and built in-house in Denmark, but is also a piece of art.

The result is that the speakers disappear even more from the equation, drawing a soundscape without audible distortion and with a pitch-black background that made the instruments stand out and create holographic sound stage.

Read More

The Legendary Raidho Ribbon Tweeter

Our proprietary, trademark ribbon tweeter is a unique design. It is completely designed and build by hand in-house in Denmark. To be exact, it is a Planar Magnetic Tweeter due to the tracks in the foil. The foil is 11 micron thick, which means it is 50 times less mass in comparison to a conventional dome tweeter. This is because there is no voice coil and the extreme low weight of the foil (20 milligram). The result is virtually no resonances or distortion, and the breakup point is at an incredible 82 KHz! What you hear is amazing clear and natural sound. All the detail in the world, but no fatigue, no distortion, and no coloration!

Read More

Our Awards

What the press is saying about the

Raidho TD10 SUB

Quote

Technical Information

Dimensions

Topology
Active subwoofer
Bass Loading
4 × 10″ passive radiators
Drivers

2× 10″ active diamond-coated Ceramix drivers

Crossover Point
Frequency Range
Sensitivity
Nominal Impedance
Power Requirement

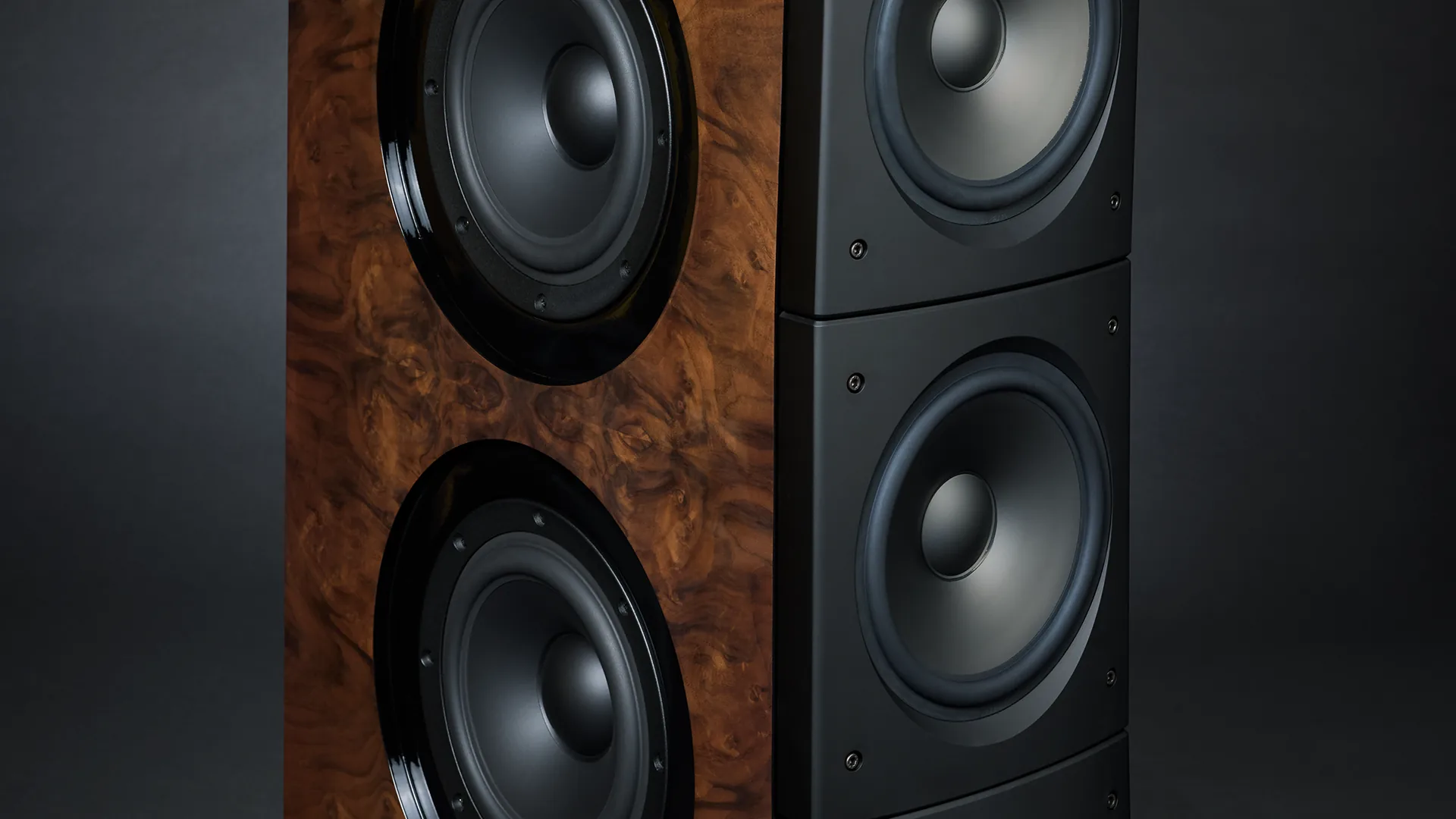

Finish
Black Piano and Walnut Burl Piano
Dimensions WxHxD, mm
480 x 980 x 600 mm including feet
Enclosure WxD, mm
295 x 600 mm
Weight, kg
64
Amplification
Width external, cm
A & B
70,5
Width inside, cm
A & B
62,8
Depth, cm
A & B
49
Height external, cm
A 12,4
B 25,2
Height inside, cm
A 8,7
B 21,5
Maxload,kg
A & B
90
Weight A, kg
12,5
Weight B, kg
16
