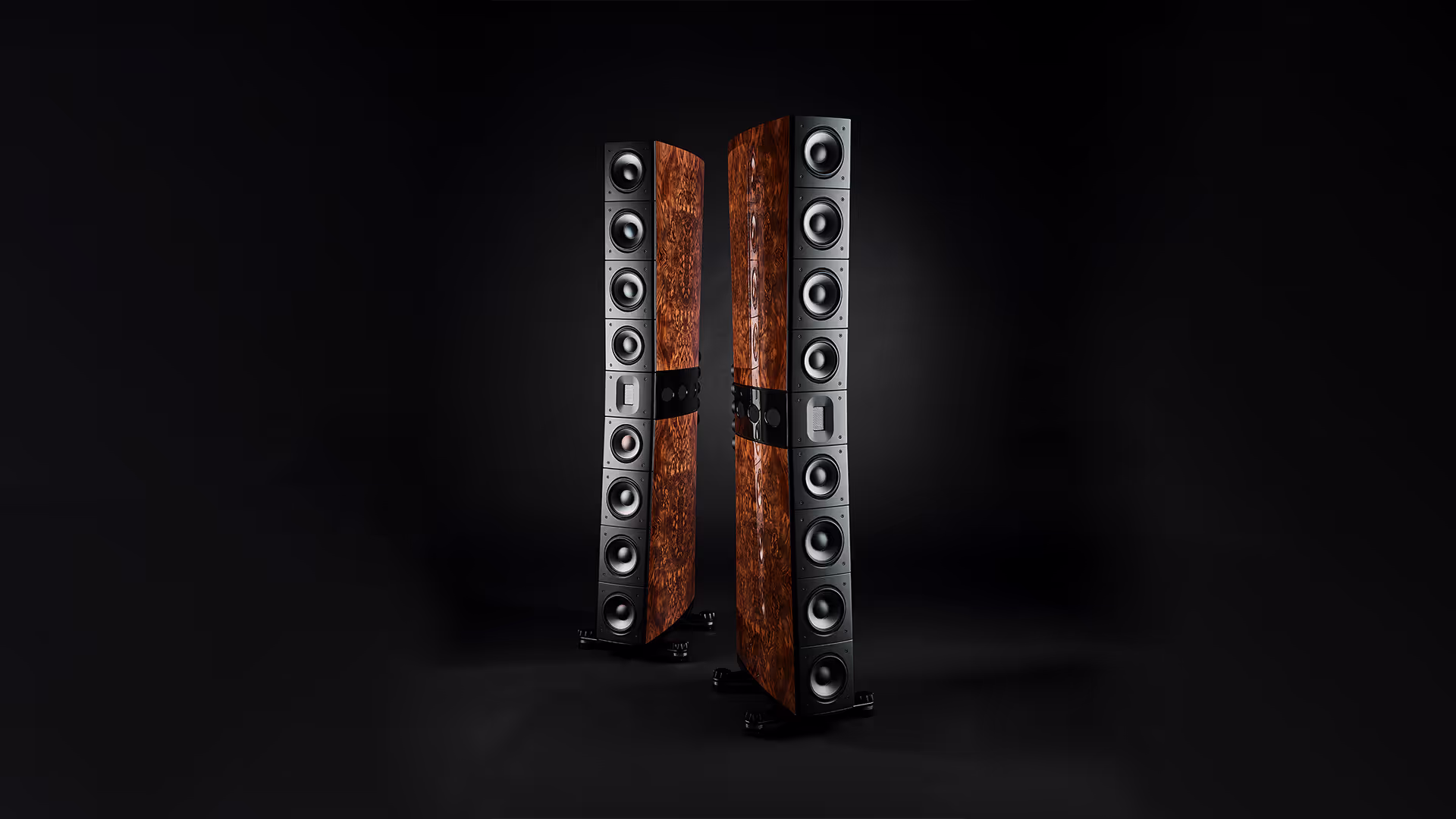

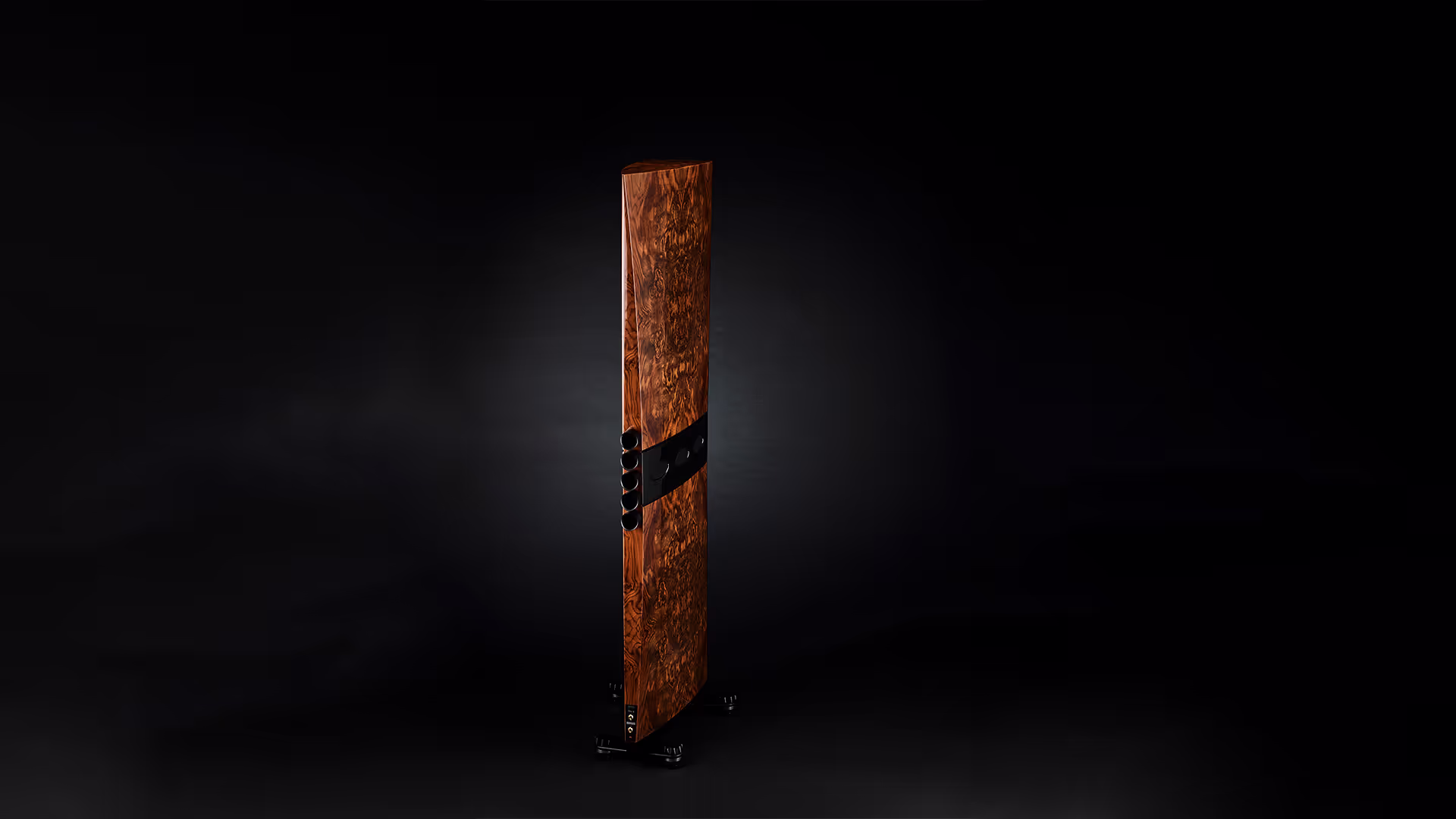

The TD4.8 is built on the MTM concept as the TD4.2, but delivers a more extreme sound.
About
The TD4.8 is build on the MTM concept as the TD4.2. This is just even more extreme designed as a true full-range speaker using our in-house made Tantalum Diamond-drivers with no less than 6 bas-drivers and 2 midranges.
Together with the upgraded TD-ribbon tweeter, this impressive speaker delivers world class musical experiences that captivates the listener with a huge soundstage capturing the atmosphere and intimacy of your recordings.
Placed on big, adjustable feet with built-in decoupling, the TD4.8 will make the best out of any room with the stunning looks, and the sound is fast, coherent and authentic. The TD4.8 was appointed the ”Cost-no-object speaker of the year 2018” in Hi-Fi+, and it is a testament to all musiclovers.
Specifications
Technical information
| Topology | 3 way |
| Bass Loading | Bass reflex Port in rear, Impulse optimized - Conform |
| Drivers | 1 x Raidho TD Ribbon Tweeter 2 x 5” Raidho Tantalum Diamond midrange 6 x 6.5” Raidho Tantalum Diamond bass |
| Drive Units | |
| Crossover Point | 400Hz and 2.4 kHz stepped slope |
| Frequency Range | 21 Hz - 50 kHz +/-3 dB |
| Sensitivity | 90dB 2,83 V/m |
| Nominal Impedance | 4 Ohm |
| Power Requirement | 50 -300 Watts |
| Finish | Piano Black, Walnut burl veneer or any colour to order |
| Dimensions WxHxD, mm | 435x1780x670 including feet |
| Enclosure WxD, mm | 200 x 630 |
| Weight, kg | 74 |
| Amplification |
| Width external, cm | A & B: 70,5 |
| Width inside, cm | A & B: 62,8 |
| Depth, cm | A & B: 49 |
| Height external, cm | A: 12,4 · B: 25,2 |
| Height inside, cm | A: 8,7 · B: 21,5 |
| Maxload, kg | A & B: 90 |
| Weight A, kg | 12,5 |
| Weight B, kg | 16 |
Quotes
HIFI PLUS 2018
“One quick blast of the Raidho TD-4.8 and you’ll know precisely what type of instrument is being played, almost to the point of knowing what kind of reed the musician prefers.” That might seem like hyperbole, until you sit and listen to the TD-4.8 played well, and realise that detailed insight into the music is compelling and powerful. So powerful, in fact, you’ll struggle to tear yourself away: “turning the track off was an act of musical barbarism. Pick an album, play track one, intending to listen to only that track. Five tracks later you are still mesmerised and reaching for the ‘Stop’ button is like disrespecting the music itself.” Wow, just wow!”
