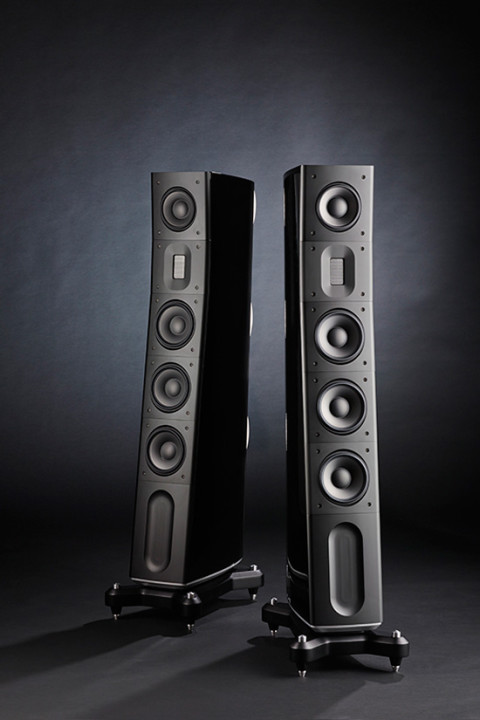

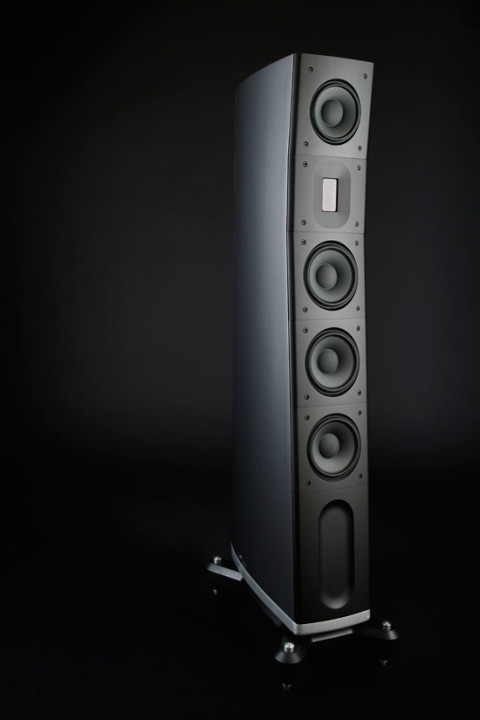

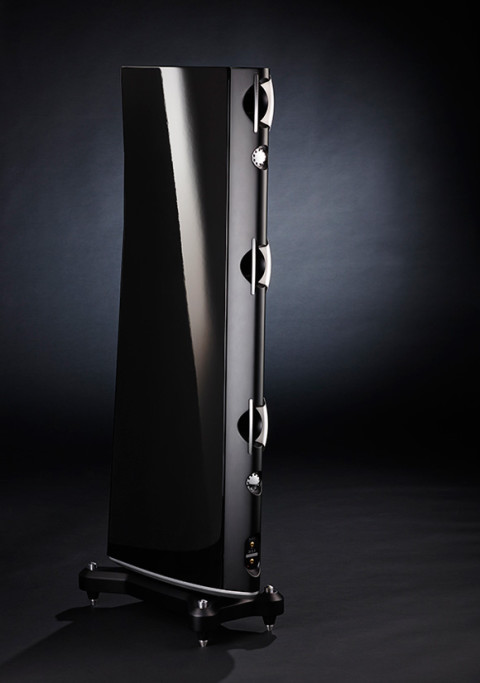

The Raidho Acoustics D3.1 is a true 3-way Raidho Diamond Driver loudspeaker. It has a dedicated 100 mm Diamond mid-range and three 115 mm Diamond bass drivers.
About
The Raidho Acoustics D3.1 is a true 3-way Raidho Diamond Driver loudspeaker. It has a dedicated 100 mm Diamond mid-range and three 115 mm Diamond bass drivers. With the D3 we have learned that more resolution makes the music much more liquid and natural. The D3.1 is an extreme performer and is for those who really enjoy spending time and effort setting up their system and finding matching components. Real music enthusiasts can expect a truly unique musical experience from the D3.1.
Specifications
Technical information
| Topology | |
| Bass Loading | |
| Drivers | |
| Drive Units | 1 sealed ribbon tweeter 1 100 mm diamond mid-range driver 3 115 mm diamond bass drivers |
| Crossover Point | 150 Hz and 3 kHz 2. order |
| Frequency Range | 30 Hz – 50 KHz |
| Sensitivity | 90 dB 2.83 V/m |
| Nominal Impedance | >5 ohm |
| Power Requirement | |
| Finish | Black piano All possible paint colors Walnut burl veneer |
| Dimensions WxHxD, mm | 200 x 1235 x 500 mm (320 x 1320 x 540 mm incl. feets) |
| Enclosure WxD, mm | Vented design Port in rear panel |
| Weight, kg | 53 Kg |
| Amplification | >50 W |
| Width external, cm | A & B: 70,5 |
| Width inside, cm | A & B: 62,8 |
| Depth, cm | A & B: 49 |
| Height external, cm | A: 12,4 · B: 25,2 |
| Height inside, cm | A: 8,7 · B: 21,5 |
| Maxload, kg | A & B: 90 |
| Weight A, kg | 12,5 |
| Weight B, kg | 16 |
Quotes
Hear it for yourself
Book a private listening session at a Raidho partner near you, or find your nearest dealer.
