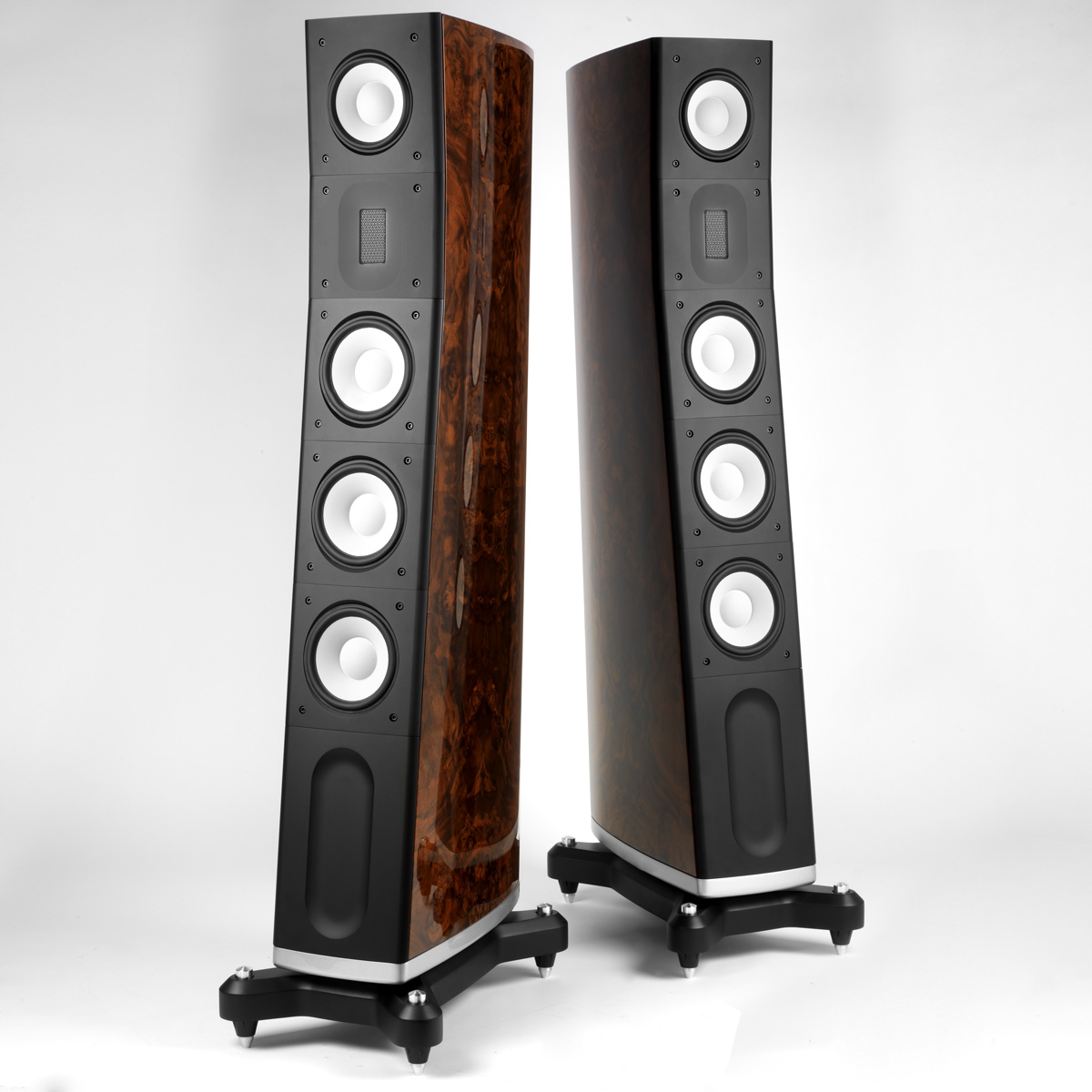

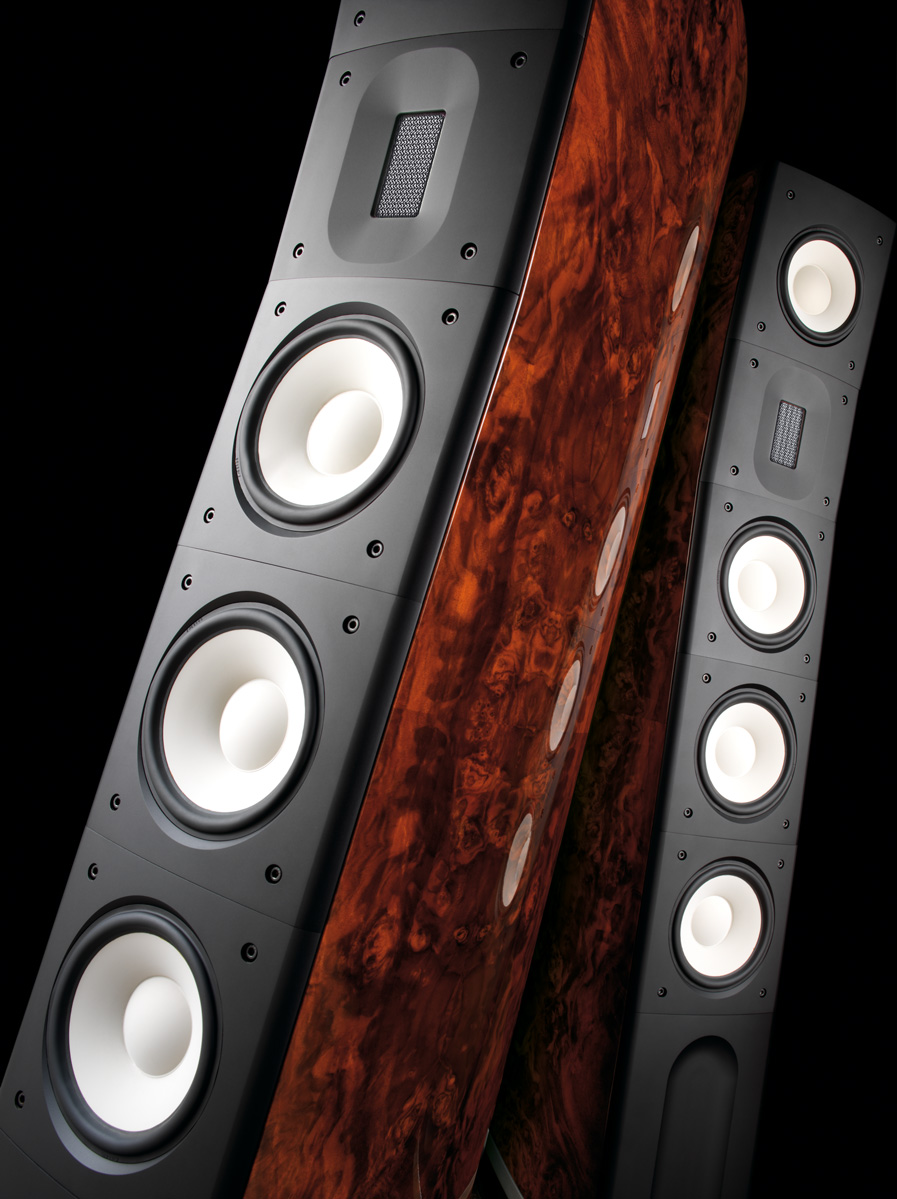

The Raidho Acoustics C3.2 is a true 3-way speaker design. It is built with a dedicated Raidho Ceramix mid-range driver and three Raidho Ceramix woofers, which are paired up with the Raidho Ribbon Tweeter.
About
The Raidho Acoustics C3.2 is a true 3-way speaker design. It is built with a dedicated Raidho Ceramix mid-range driver and three Raidho Ceramix woofers, which are paired up with the Raidho Ribbon Tweeter. The greatest advantage of the 3-way design is that the narrower pass-band of the drivers makes it possible to optimize and tailor them closer to the desired sonic capabilities. The optimization of the drivers makes the moving mass of our mid-range smaller, the membrane lighter and stiffer, and makes it possible to fit the mid-range with a lighter and an even softer spider and surround. This allows for more resolution and better transient handling in the music performance where the mid-range meets the tweeter. The C3.2 is designed for mid-sized rooms, and it will let you get the very best out of your music collection.
Specifications
Technical information
| Topology | |
| Bass Loading | |
| Drivers | |
| Drive Units | 1 sealed ribbon tweeter 1 100 mm Ceramic mid-range driver 3 115 mm Ceramic bass drivers |
| Crossover Point | 150 kHz 3 kHz 2. order |
| Frequency Range | 30 Hz – 50 KHz |
| Sensitivity | 88 dB 2.83 V/m |
| Nominal Impedance | >5 ohm |
| Power Requirement | |
| Finish | Black piano All possible paint colors Walnut burl veneer |
| Dimensions WxHxD, mm | 200 x 1235 x 465 mm (320 x 1320 x 500 mm incl. spikes) |
| Enclosure WxD, mm | Vented design Port in rear panel |
| Weight, kg | 53 Kg |
| Amplification | 50 W |
| Width external, cm | A & B: 70,5 |
| Width inside, cm | A & B: 62,8 |
| Depth, cm | A & B: 49 |
| Height external, cm | A: 12,4 · B: 25,2 |
| Height inside, cm | A: 8,7 · B: 21,5 |
| Maxload, kg | A & B: 90 |
| Weight A, kg | 12,5 |
| Weight B, kg | 16 |
